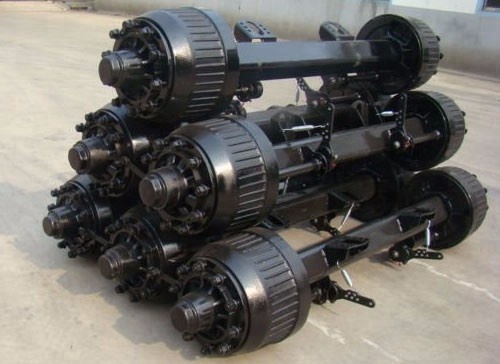

German 12T type axle

Packaging Details:pallet
Delivery Time
Shipped in 20 days after payment

Categories: , Tags: ,

Product Description

German 12T type axle Product Description

Max Capacity
(T)
      Track
(mm)
   Brake size
(mm)
          Tube
(mm)
  Total length
(mm)
      Weight
(kgs)
     Bearing
          12
      1840
   φ420*180
150*150*12
       2172
        380

out 33213

inner33118
          13
      1840
   φ420*200
150*150*12
       2172
        381
          14
      1850
   φ420*200
150*150*14
       2222
        412

out 33215

inner32219

Track can be changed depending on your demand

Axle Advantages:
1,Axle Beam adopt high-quality alloy steel(20Mn2),whole piece heat treatment to increase its hardness and tension;Bearing position with high frequency-quenched treatment to provide super durability and fatigue capability.
2,Processed by CNC lathe machine,Robot welding,automatic assembly and convey line.Easy assembly and disassembly to increase maintenance efficiency.
3,High-quality,asbestos free and Self-research-producing SHENLI No.108B brake lining can guarantee to you 100000km.At the same time the brake with good perfomance,long life,no noise and environmental friendly.
4,Efficient and Mobil XHP222 Grease can prolong bearings life and realize the real energy efficient.
5,The world well-known Brand bearings with great bearing capacity,high rotary speed,excellent rigidity,heat shock and vibration.
6,Hub bolt is made of alloy steel,with high strength,great tensile and also assembly two locating sleeves to ensure running accuracy after tire loading/protect the screw thread.

Our Services & Strength for German 14T type axle

1. High over-load capacity. Axle shaft is one-time-formed; unique overall heat treatment, thus it largely enhance the strength and elasticity of the axle and improvethe load capacity. 2. Processed by CNC lathe machine, Robot welding, automatic assembly and convey line. Easy assembly and disassemble to increase maintenance efficiency.  3. High-quality, asbestos free and Self-research – producing can guarantee to you 100000km. At same time the brake with good performance, long life, no noise and environmental friendly. 4. Customized design. Customized design is available for we own the most powerful technician and development team in China. We can develop new products and modify traditional products according to your requirements.

 5.Stable and durable. With our 9 years machinery experience, we make our axles high and very stable quality. Our after-sales sites are much matured, we provide one-year quality guarantee for all our over-sea sales.
